Sandbox

This guide summarizes sandbox integration: environment differences, merchant setup, keys and required params, available APIs, and callback simulation.

1. Sandbox highlights

• Merchant number prefix: Sandbox merchant numbers use the SD prefix, Example: production 123456 —sandbox SD123456. All sandbox requests must use the sandbox merchant number mchNo.
• Local simulation: Sandbox requests do not hit real upstream systems. Both pay-in and pay-out () will return simulated results.
• Callbacks: Sent to the downNotifyUrl provided at order creation. Ensure it is publicly reachable. For Pay-Out, confirm the calling IP is whitelisted if required.

Domain guide

Type	Domain	Scope	Notes
Unified domain (recommended)	openapi.toppayment.com	All fiat countries and crypto	Fiat paths include {countryCode}; crypto uses /crypto/...; legacy hosts remain available
Country domain (compatible)	global-{countryCode}-openapi.toppayment.com	All fiat countries	e.g. global-ng-openapi.toppayment.com
Legacy crypto domain (compatible)	global-digit-openapi.toppayment.com	Crypto	Path remains /crypto/...

Examples:

• Recommended (fiat): https://openapi.toppayment.com/sandbox/{countryCode}/...
• Recommended (crypto): https://openapi.toppayment.com/crypto/sandbox/...
• Legacy (fiat): https://global-{countryCode}-openapi.toppayment.com/sandbox/{countryCode}/...
• Legacy (crypto): https://global-digit-openapi.toppayment.com/crypto/sandbox/...

2. Preparation

1. Get sandbox merchant config

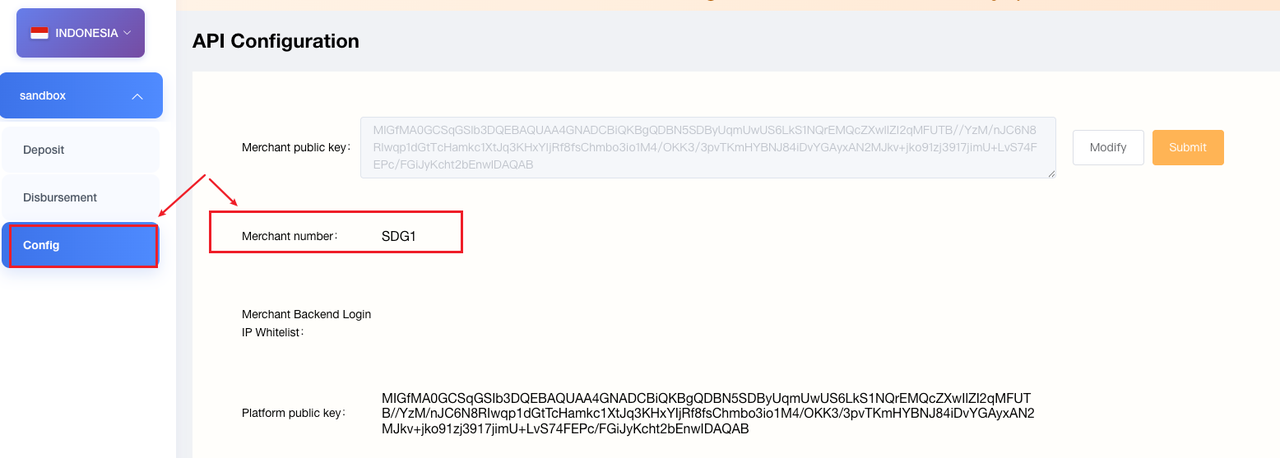

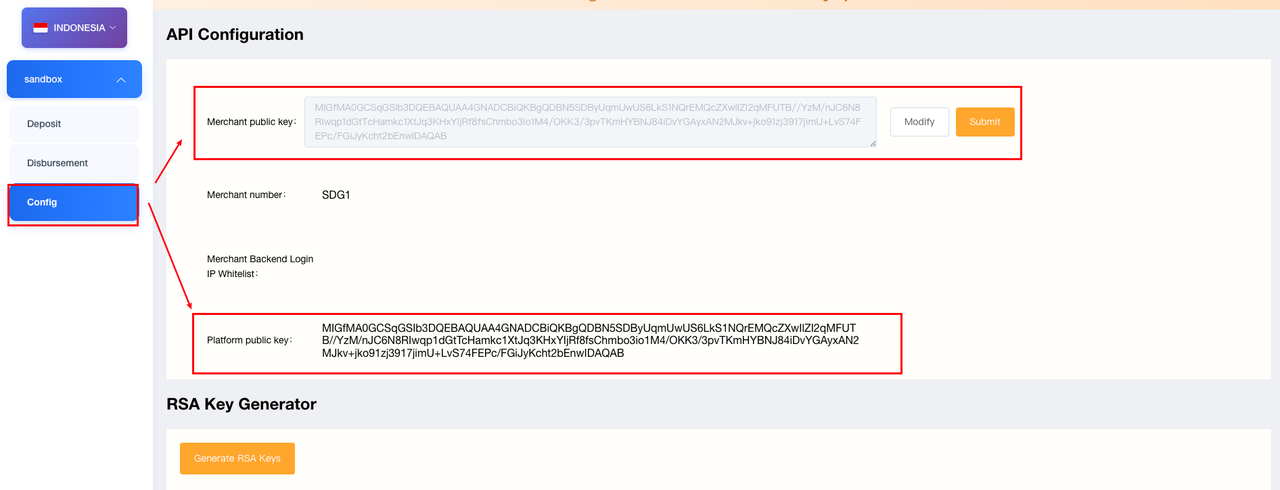

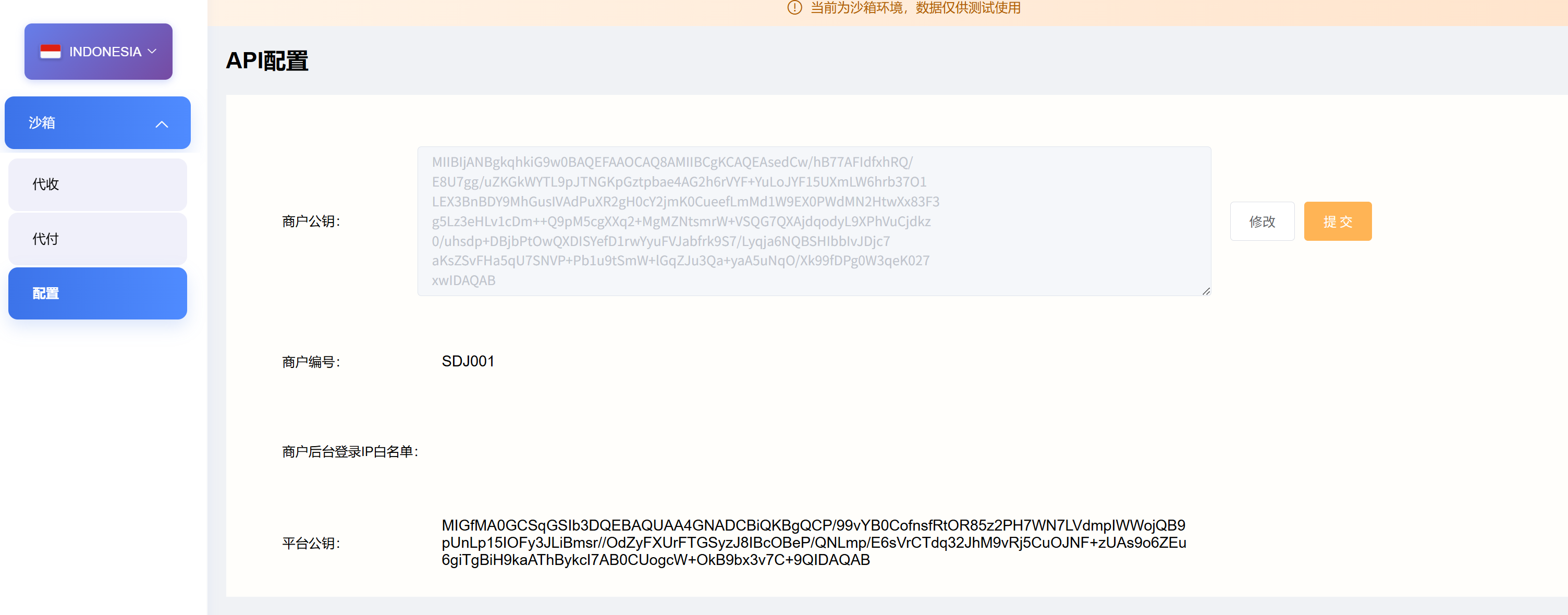

   From the merchant dashboard, obtain the sandbox API config and sandbox merchant number SDxxxxxx, and upload the merchant public key.



2. Generate key pair

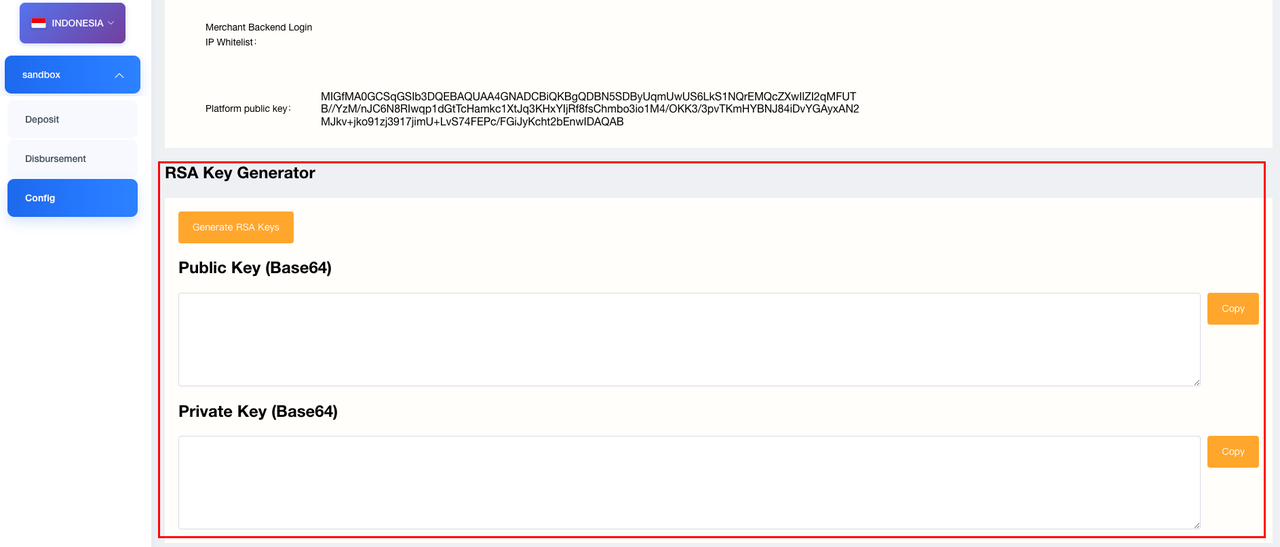

   Use RSA PKCS#8 (recommended 2048-bit; 1024-bit for legacy merchants only — see Signature). Retain the merchant private key for signing; upload the merchant public key to the dashboard.


3. Platform public key
   Download the public platform key from the dashboard to verify platform callbacks.


4. Params & callbacks

   • mchNo: sandbox merchant number (required)
   • sign: generated per signature rules
   • downNotifyUrl: callback URLs for Pay-In and Pay-Out
   • Pay-Out: ensure source IP is whitelisted if needed

3. Common sandbox APIs

Build URLs from the table above. Fiat recommended: https://openapi.toppayment.com/sandbox/{countryCode}/...; crypto recommended: https://openapi.toppayment.com/crypto/sandbox/...

Scenario	Path (sandbox)	Notes
Pay-In create	/sandbox/{countryCode}/pay/prePay	method per payment method table
Pay-In query	/sandbox/{countryCode}/pay/query	Supports orderNum / platOrderNum
Pay-Out create	/sandbox/{countryCode}/disbursement/cash	bankCode per Pay-Out bank table
Pay-Out query	/sandbox/{countryCode}/disbursement/query	Supports orderNum / platOrderNum
Balance inquiry	/sandbox/{countryCode}/balance/v1	Provide currency

countryCode reference: ph (Philippines), id (Indonesia), ng (Nigeria), in (India), th (Thailand), vn (Vietnam), pe (Peru), br (Brazil), mx (Mexico), co (Colombia), bo (Bolivia), pk (Pakistan), bd (Bangladesh).

4. Callback & Status stimulation

• Sandbox sends callbacks to the downNotifyUrl provided in each order (Pay-In / Pay-Out).

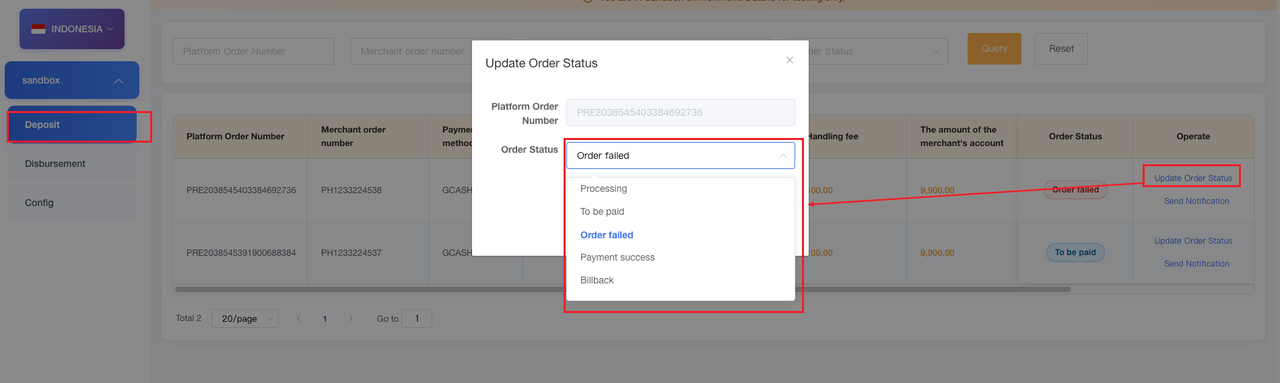

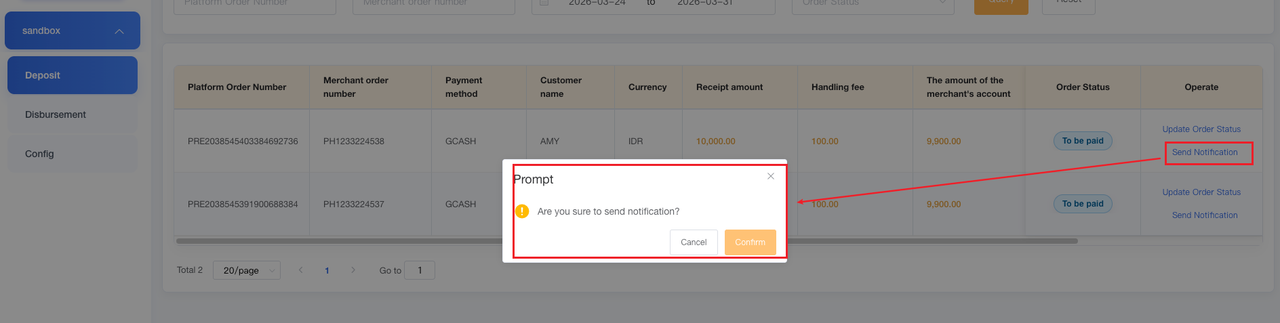

• Manual Stimulation:You may manually simulate callbacks via the sandbox backend by navigate to the order details page, use the “Change Order Status—or “Send Notification—buttons to modify status and trigger callbacks.


• Verify signatures according to the signature guide.

5. Checklist

• Sandbox merchant number (SD prefix)
• Merchant RSA private key (signing)
• Merchant RSA public key uploaded to dashboard
• Platform public key obtained for verification
• Publicly reachable downNotifyUrl for Pay-In / Pay-Out; Pay-Out source IP whitelisted if needed
• Use sandbox domain + sandbox/{countryCode} paths for requests

6. References

• Signature
• Regional Payment Guide (methods & bank codes)
